Multi Purpose Distribution Fiber Optical Cable

    Description:

    MPC multi-purpose distribution cable use several Φ900μm flame-retardant tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of aramid yarn as strength member units, and the cable  is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.


    Characteristics:

    •Tight buffer fiber easy of stripping

    •Aramid  yarn as strength member make cable have excellent tensile strength

    •The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.


    Applications:

    •Multi optical fiber jumper

    •Indoor any purpose cable distribution


    Standards:Comply with Standard YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794-2-20/21, etc; and meet the requirements for UL approval for OFNR and OFNP.

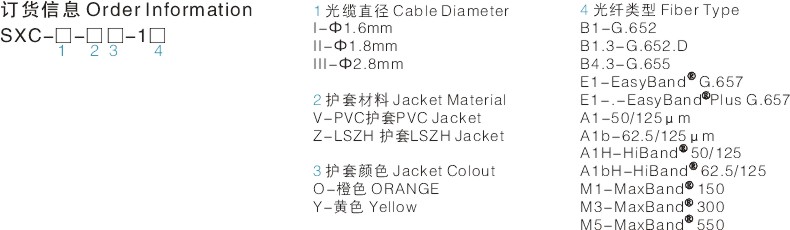

    Note:X1 and X1 in cable coder represent cable purpose and cable sheath color respectively, have different choice, see order information column; Xn represent fiber type.

     In bending radius column, D represents cable diameter.Using TBF and its diameter is: 900±50μm


    Transport/Storage/Operating Temperature:-20℃~+60℃,Installation Temperature:-5℃~+50℃


    Delivery Length:Standard Reel Length: 2000 m; Other lengths available on request.





    Multi Purpose Distribution Fiber Optical Cable
