Stranded Loose Tube Single-steel-wire Armored Fiber Optical Cable

    Description:

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filling with the filling compound to protect it from water ingress. Then the cable covered is covered with a thin PE inner sheath. And a PSP is longitudinally applied over the inner sheath, the cable is covered with a PE outer sheath.  After the single-steel armored, the cable is finallycompleted with an outer sheath.


    Characteristics:

    •Good mechanical and temperature performance

    •Single-steel ensures good performance of tensile strength

    •High strength loose tube that is hydrolysis resistant

    •Special tube filling compound ensure a critical protection of fiber

    •Crush resistance and flexibility

    •The following measures are taken to ensure the cable watertight

    •Steel wire used as the central strength member

    •Loose tube filling compound

    •100% cable core filling

    •APL moisture barrier

    •PSP enhancing moisture-proof

    •Water-blocking material


    Standards:

    Complies with Standard YD/T 901-2001 as well as IEC60794-1.


    Storage/Operating Temperature:-40℃ to + 70℃


    Note:

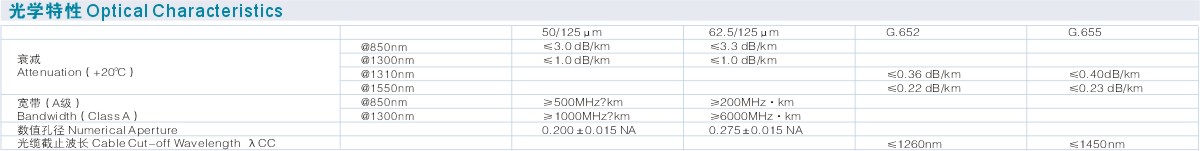

    Suffix Xn denotes fiber type and see details in  optical fiber illustration.

    The colour arrangements of fiber and tube are specified in the colour identification table.

    The nominal value of the PE jacket thickness is 1.6mm.

    Need more detailed information please consult local sales representative.

    The optical cable shouldn’t stored in outdoor environment more than one year.



    Stranded Loose Tube Single-steel-wire Armored Fiber Optical Cable
