The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filling with the filling compound to protect it from water ingress. Then the cable is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE sheath.
•Good mechanical and temperature performance
•High strength loose tube that is hydrolysis resistant
•Special tube filling compound ensure a critical protection of fiber
•Crush resistance and flexibility
•The following measures are taken to ensure the cable watertight
•Steel wire used as the central strength member
•Loose tube filling compound
•100% cable core filling
•APL moisture barrier
•PSP enhancing moisture-proof
Complies with Standard YD/T 901-2001 as well as IEC60794-1.
Storage/Operating Temperature：-40℃ to + 70℃

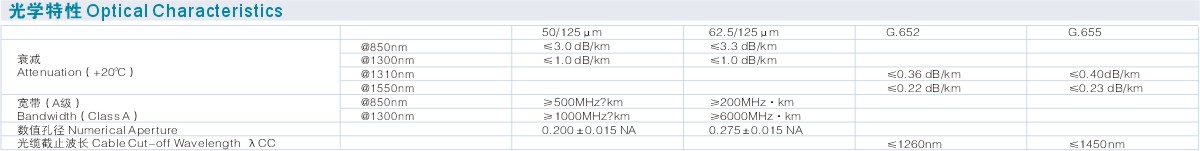

Suffix Xn denotes fiber type and see details in optical fiber illustration.

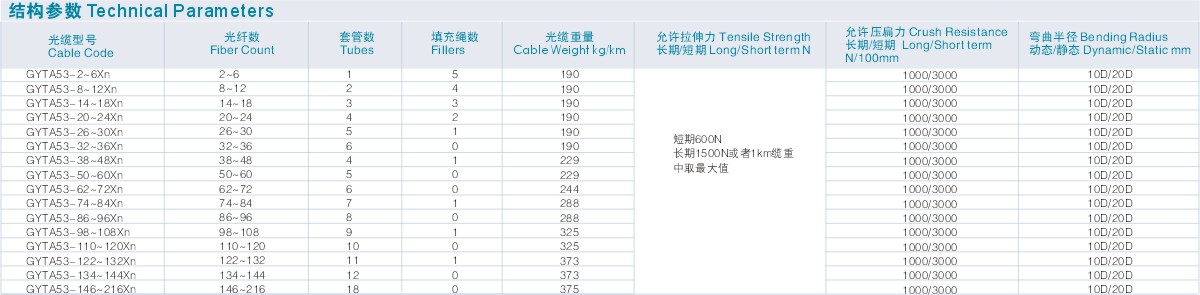

The colour arrangements of fiber and tube are specified in the colour identification table.
The nominal value of the PE jacket thickness is 1.6mm.
Need more detailed information please consult local sales representative.
The optical cable shouldn’t stored in outdoor environment more than one year.
