The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.
•Good mechanical and temperature performance
•High strength loose tube that is hydrolysis resistant
•Special tube filling compound ensure a critical protection of fiber
•Two parallel steel wires ensure tensile strength
•PE sheath protects cable from ultraviolet radiation
•Small diameter, light weight and friendly installation
Complies with Standard YD/T 769-2003.
Storage/Operating Temperature：-40℃ to + 70℃

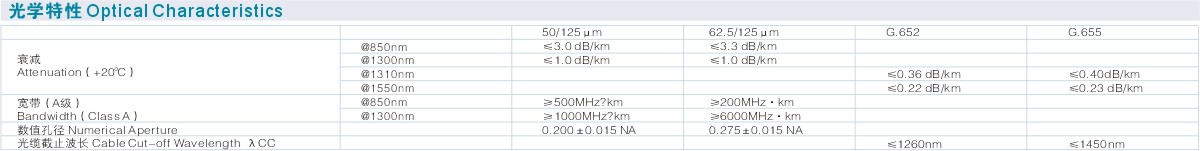

Suffix Xn denotes fiber type and see details in optical fiber illustration.
The colour arrangements of fiber and tube are specified in the colour identification table.
The nominal value of the PE jacket thickness is 1.6mm.
Need more detailed information please consult local sales representative.
The optical cable shouldn’t stored in outdoor environment more than one year.
